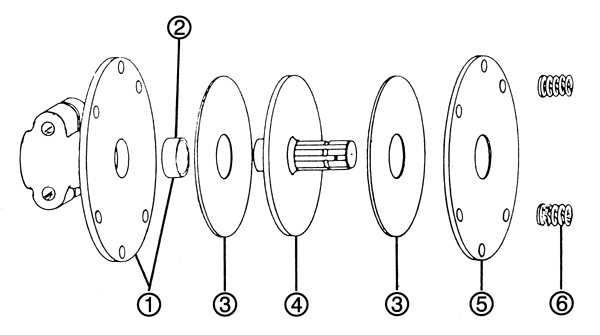

REF
|
PART
No.
|
DESCRIPTION
|
|
1
|
|
1
3/8" x 6 Spline base assembly (includes bush)
|
|
|
1
1/4" Round Bore 1/4" keyway base (includes
bush)
|
|
|
1
3/8" Round Bore base assembly (includes bush)
|
|
|
1
3/4" x 20 Spline base (includes bush)
|
|
2
|
|
Bush
1 1/8" ID
|
|
3
|
|
Friction
Disc 5" OD x 1 3/4" ID
|
|
4
|
|
1
3/8" x 6 spline Drive Plate 5" OD - For 2 Plate Clutch
|
|
|
1
3/8" x 6 spline Drive Plate 5" OD - For 4 Plate Clutch
|
|
5
|
|
Pressure
Plate
|
|
6
|
|
Spring
(6 req.)
|
|
|
Blue Heavy Duty Spring
(6 req.)
|
